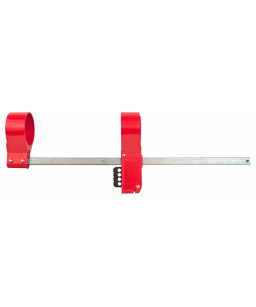

Blind Flange Lockout Large - S3924

S3924
New

Blind Flange Lockout 52.3mm - 69.9mm

£120.20 (exc. VAT)

£144.24 (inc. VAT)



Easy to use, adjustable device provides a best-in-class solution for pipeline maintenance.

Best practice lockout solution
for pipeline maintenance

  • During pipeline maintenance, closed valves upstream could fail or residual material in the line may not be fully drained. These create potential exposure to downstream workers to chemicals, flammable gasses, oil, steam and other risks.
  • Use of a blind on a flange pipe is required by OSHA and provides a physical barrier against the unintentional release of energy.
  • The new blind flange lockout device provides the best practice solution to improve compliance and control of potential hazards. It ensures the blind will not unintentionally be removed until all work is complete and all personal safety locks are removed.

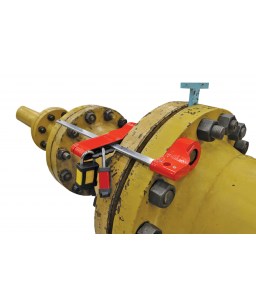

Device fully conceals flange bolts preventing access to the blind until all work has been completed.

Adjustable device provides a tight fit, adapting to multiple flanged pipe applications.

3 sizes available for use with nut diameter from  1-7/8 to 2 3/4 inch (3mm to 69.9mm).

Four lockout holes allow for multiple workers to lockout device at one time.

Durable
aluminum and hardened steel construction withstands conditions indoors and out.



S3924 -

Recommended Nut Dia: 2" – 2-3/4" (52.3 mm – 69.9 mm)
Pipe Dia. Range: 14" – 24"
Pipe Flange Width Range: 7-3/4" – 17-7/8" (196.9 mm – 447.8 mm)
