S3502 Wall Mounted Group Lock Box

Can be used in conjunction with S3501 or stand alone.

Stainless steel construction for excellent weather and wear resistance

Durable window allows for easy viewing of locks and keys

Slide out key cup for easy key retrieval

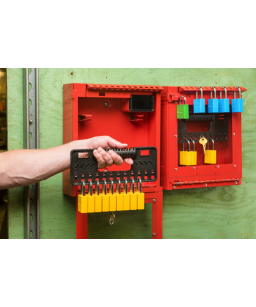

Removable lock caddy for convenient transport of locks to location needed

Lockout holes for 12+1 locks including control lock position. Can accept locks with shackles up to 3/8"(9.5mm)

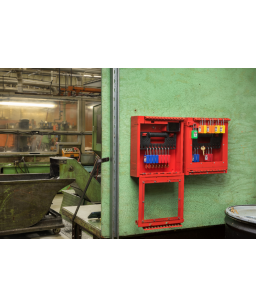

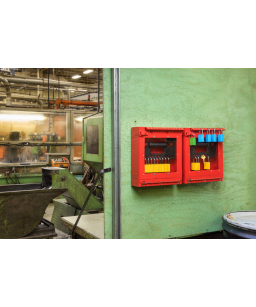

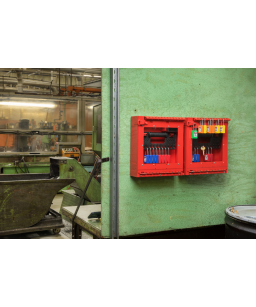

Wall mountable and attaches easily to Permit Display Station S3501

Can be chained together with other S3502 units, to handle larger facilities with multiple lockout requirements

Can be customized with optional brass or aluminum tag

Product Details

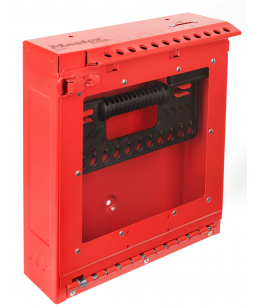

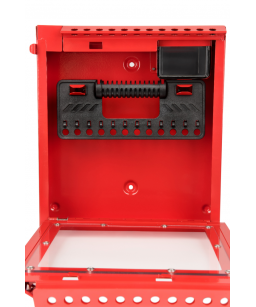

The Master Lock S3502 Wall Mount Group Lock Box contains a 12-lock hand caddy and removable key cup. Includes 12 exterior lock holes for personal safety locks, plus a hole in the latch for the control lock. A clear, impact-resistant window allows users to view locks and key(s) secured inside the box.

Dimensions:

Overall Height 13.7"/347mm
Overall Width 12.6"/319mm
Overall Depth 4.7"/119mm
Window Height 8.2"/209mm
Window Width 9"/229mm
Weight 8.4lbs/3.8kg
Weatherability (ASTM F883-09, 11)
Salt Fog Grade 6 (Scale 1-6)
Salt/UV Grade 6 (Scale 1-6)
Operating temp -40 to 200F/ -40 to 93C

Body:

430 Stainless Steel

Permit window: Polycarbonate

Lock Caddy: Polypropylene
