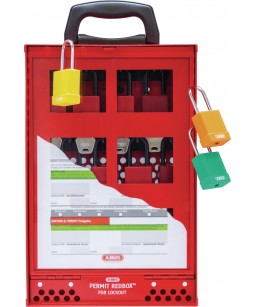

B810 Permit Redbox™ incl. wall bracket
88882
New
- To coordinate group lockout procedures in combination with permit-to-work systems
- Integration of work permits to better inform the persons involved
- Increased security by locking the work permit note until the end of all work

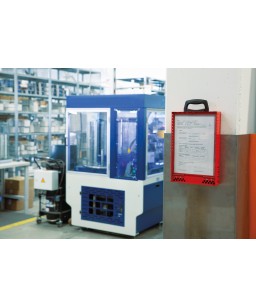

- Flexible use as mobile box or fixed at the enclosed wall-bracket
- Also ideal for storing machine locks directly at the machine
- 2 in 1: For the perfect integration of permit-to-work systems into existing group lockout procedures
- Efficient combination of precise machinery lockout procedures with necessary locking of permit-to-work notes in a large, lockable front pane
- Enhanced security and transparency for all invovled front line workers
- High flexibility thanks to mobile and stationary use of the box
- Generous and well-arranged space to store machine locks
Standard procedures for safely switching off systems within businesses often involve permit-to-work documentation. The new B810 Permit Redbox™ allows you to integrate these documents as well as storing machine and system locks. It combines precision systems protection with the necessary protection for your permit in a large, lockable display window. For more safety and transparency in maintenance work.
- Stable box made of powder-coated metal sheet
- Large, lockable front pane to display the dedicated work permit notes (A4 format)
- With 20 insertion holes for personal LOTO locks plus additional 3 for authorized persons
- Large storage space with hook rails to store up to 24 machine padlocks
- With carrying handle for mobile use
- With enclosed wall-bracket for stationary use of the box
- Inside with quick-release-button to optionally fix the box on the wall-bracket
- All around with punched holes for better light incidence and insight
- Side with insertion slot for keys with key tag
- ProductB810 Permit Redbox™ RED
- Depth [mm] 68
- Wall Bracket 174 x 40 x 10
- Width [mm]240
- Shackle Diameter [mm]7
- Mounting Points23
- Length [cm]380
- Weight [g]3423
